Overhead crane light

  • Overhead crane Blue spot warning light
  • Overhead crane Blue spot warning light
  • Overhead crane Blue spot warning light
  • Overhead crane Blue spot warning light
Overhead crane Blue spot warning lightOverhead crane Blue spot warning lightOverhead crane Blue spot warning lightOverhead crane Blue spot warning light

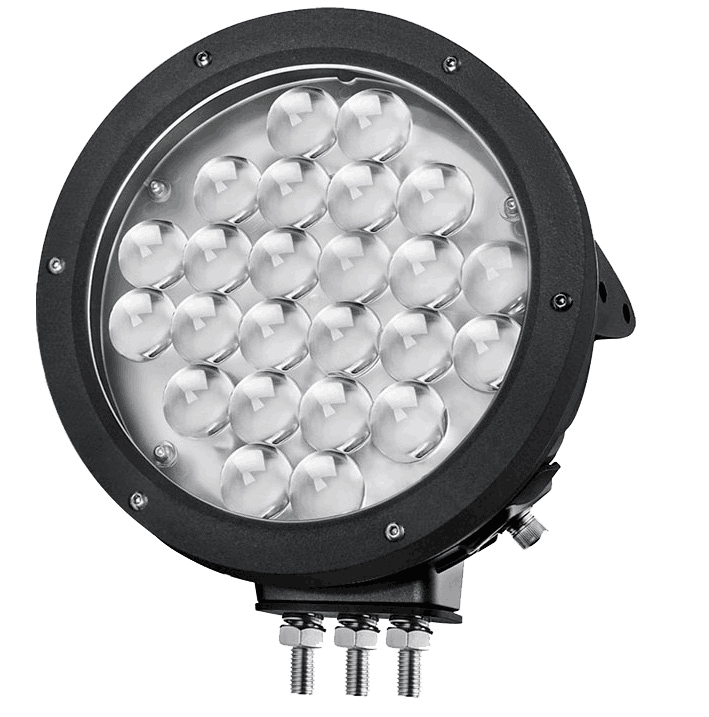

Overhead crane Blue spot warning light

  • Product ID:OCA301
  • LED:Blue
  • Shape: Spot
  • Cable length:Optional
  • Product description: Overhead crane blue warning light
  • INQUIRY   EMAIL

Power: 72 Watts
Current: 2.3A @24V Blue,  1.4A @24V RED
Voltage: 9-32 Volts DC
Lumens: 12,000 lumens(each light creates one spot or line)
LEDs: 24 (Cree LED)
LED color: Blue
Beam Type: Spot beam
Working life: Up to 50,000 hours

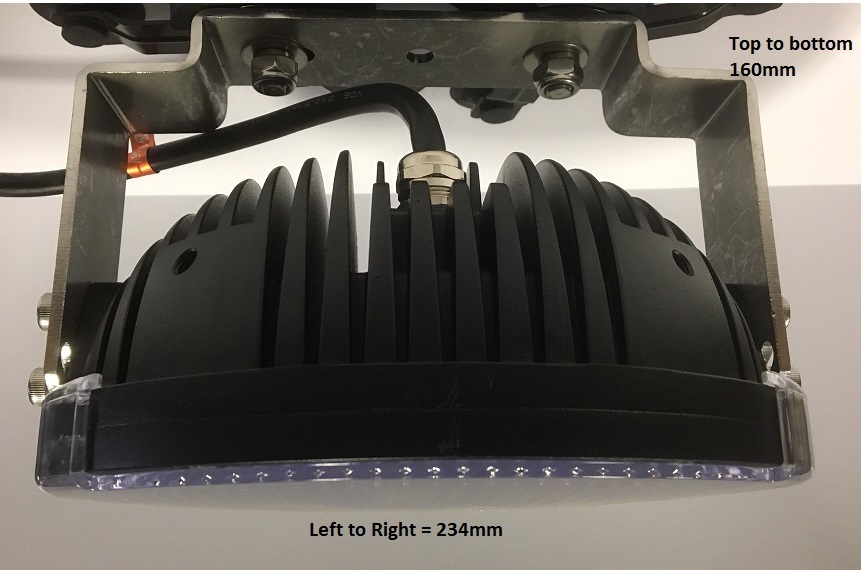

Size: 9" X 3.9" X 9.2" (229 X 98 X 234mm)
Weight: 4.5kg
Waterproof: IP67
Working temperature: -40~85℃
Material: Aluminum die-cast housing.
Approval: CE--RoHS

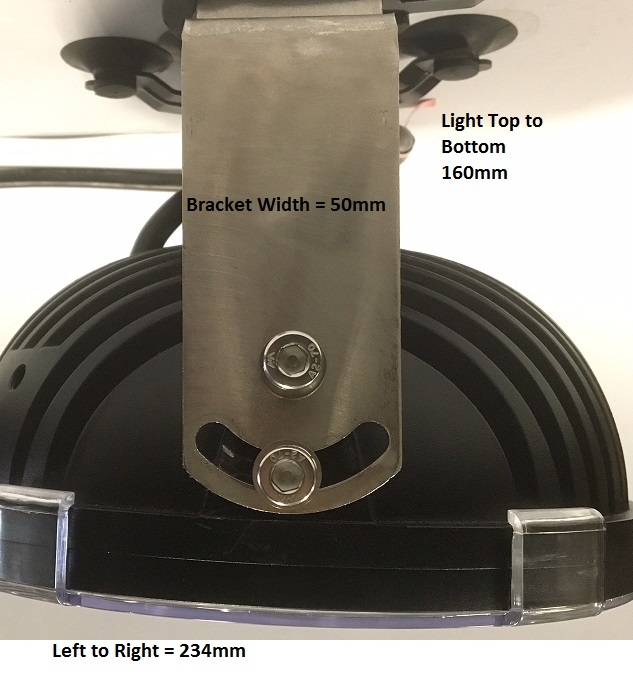

Adjustable mounting bracket: 150 degree up/down.
Cable Length: 0.2 meters.
One-year warranty
Include U shape bracket and frozen lens

High-grade lights used by companies that care about their employee’s safety.

Why You Should Use Safety Lights?

Discover their main benefits:

  • Versatility – Crane Warning Light is available in two colors (red, blue) and can be used both indoor and outdoor. Thanks to that it’s easy to adjust it to your company requirements.

  • Convenience – the use of lamps makes the work of crane operators much easier and safer and provides them a higher control over the load.

  • Efficiency – our lamp is an ideal solution especially for crowded areas in any workplace, increasing the safety of your employees around cranes and loading areas.


How Does It Work?

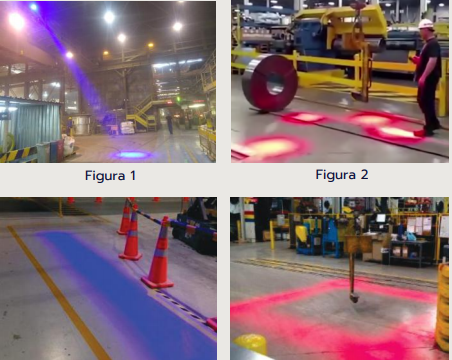

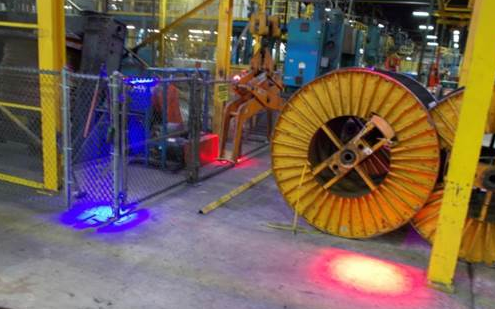

Crane warning lights ensure the safety of pedestrians by projecting safety lines on the floor. Those lines (displayed in a chosen color) inform all employees nearby about the moving load. When used by the crane operator they help the operator position the crane precisely.


For Pedestrians:

Thanks to the special beam all pedestrians nearby are aware of the load movement. The light is easy to spot making the lamps an effective indicator of the movement of the load. This allows everyone close to the crane to estimate the load’s distance, mass, and dimensions making it easier and safer to move around when the crane is working.

For Operators:

The biggest benefit for the operator is the increased comfort of work. Being able to more accurately assess the exact position of the load makes the whole work of crane operators much easier. Thanks to the safety lights they can worry less about people failing to notice the load and can focus more on their daily duties.
