Overhead crane light

  • Overhead crane Red line warning light
  • Overhead crane Red line warning light
  • Overhead crane Red line warning light
  • Overhead crane Red line warning light
  • Overhead crane Red line warning light
Overhead crane Red line warning lightOverhead crane Red line warning lightOverhead crane Red line warning lightOverhead crane Red line warning lightOverhead crane Red line warning light

Overhead crane Red line warning light

  • Product ID:OCA301
  • LED:Red
  • Shape: Line
  • Cable length:Optional
  • Product description: Overhead crane Red line warning light
  • INQUIRY   EMAIL

Power: 72 Watts
Current: 2.3A @24V Blue,  1.4A @24V RED
Voltage: 9-32 Volts DC
Lumens: 12,000 lumens(each light creates one spot or line)

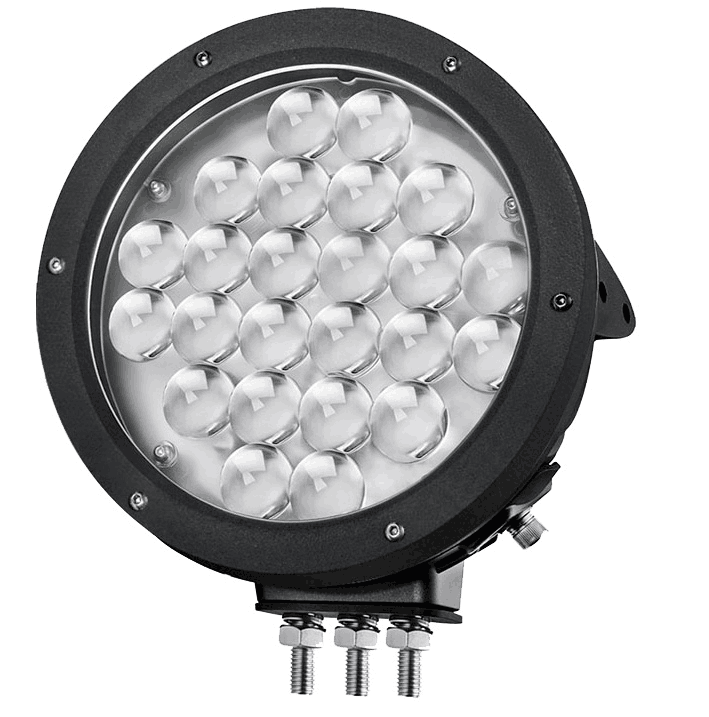

LEDs: 24 (Cree LED)
LED color: BLUE
Beam Type: Line beam
Working life: Up to 50,000 hours

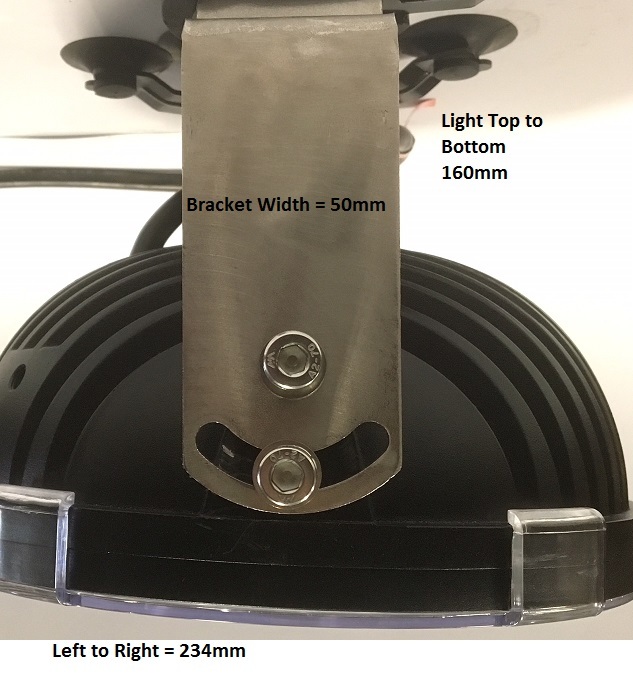

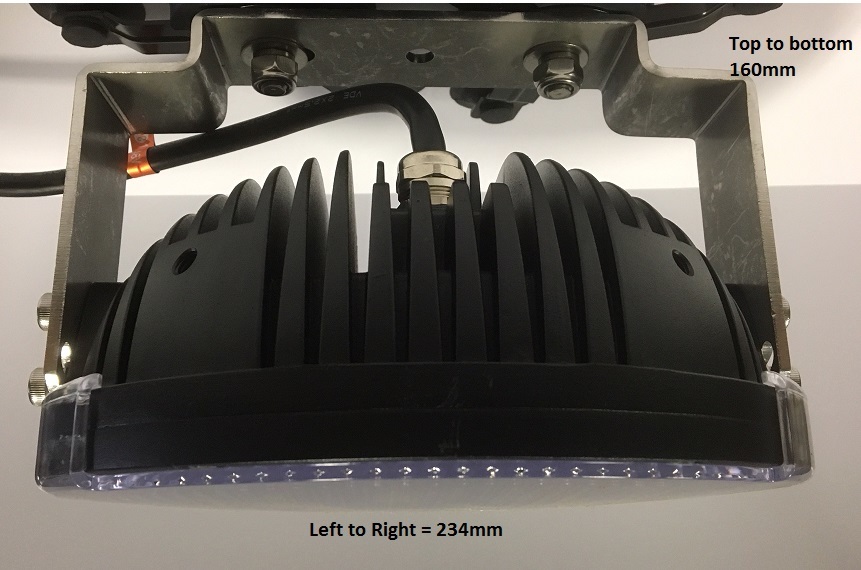

Size: 9" X 3.9" X 9.2" (229 X 98 X 234mm)
Weight: 4.5kg
Waterproof: IP67
Working temperature: -40~85℃
Material: Aluminum die-cast housing.
Approval: CE--RoHS
Adjustable mounting bracket: 150 degree up/down.
Cable Length: 0.2 meters.
One-year warranty
Include U shape bracket and frozen lens


How it works:

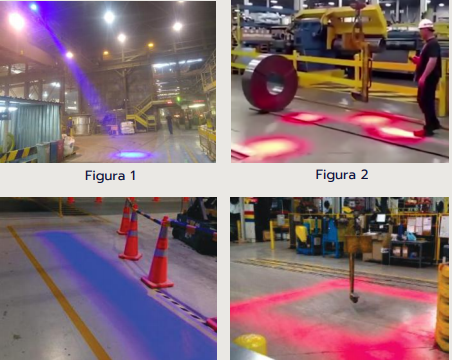

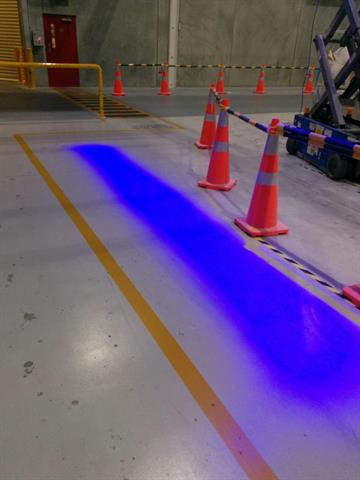

.Powerful Blue, Red or White 24 LED Spotlight or line light that comes standard with a lens cover that turns the spot into a line on the floor below.

.Installs to overhead crane pointing down on production floor below.

.Snap on lens cover is standard - turns spot into line on floor below.

.Helps to warn workers and pedestrians of the movement of the crane hook and load.

.Whether controlling the hook/load from the top or wirelessly from the bottom, spot or lines gives the operator another frame of reference BOTH horizontally and vertically for more stable and accurate control.



Why You Want One:

Spot/line provide additional visual warning with respect to the proximity of the hazard above or coming this way.

Loud audible alarms are sometimes overwhelmed by the sound of the factory - visual spot/line is moving and indicates proximity to hook/load

Additional control makes operators safer with loads.

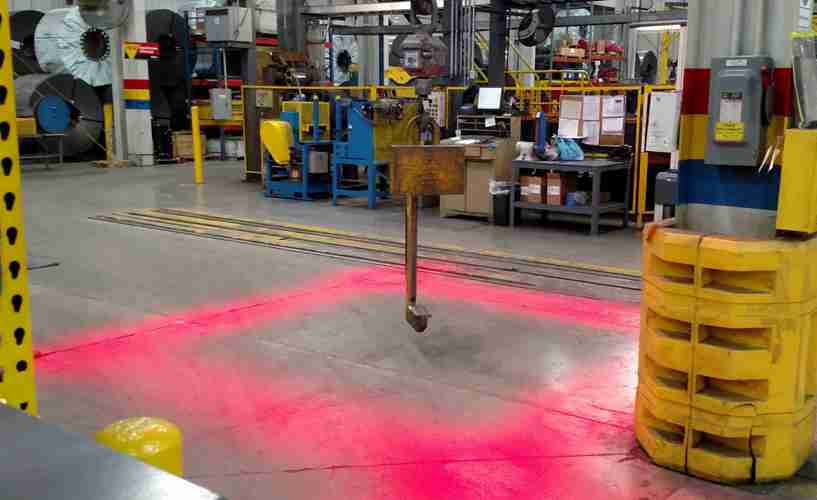

Many clients use 4 lights with lens cover (standard) creating a "box" or "danger zone" around the hook/load below.

Workers can become immune to the sound of forklift or overhead crane siren warning alarms - especially in a loud manufacturing plant.

Employees are sometimes focused on the immediate task at hand and can become oblivious to audible alarms - when a spot or lines comes into their field of vision - they take NOTICE.

The movement of light from overhead crane provides actual and definitive warning to workers below.

Moving lines/spot on the floor prevents pedestrians from walking under suspended load.

Warning light is automatically on when the overhead crane is energized - reducing human error.

Crane operators do NOT have to take their eyes off Hook Block to know it is centred over the load
